Phoenix
Specs
- Payload

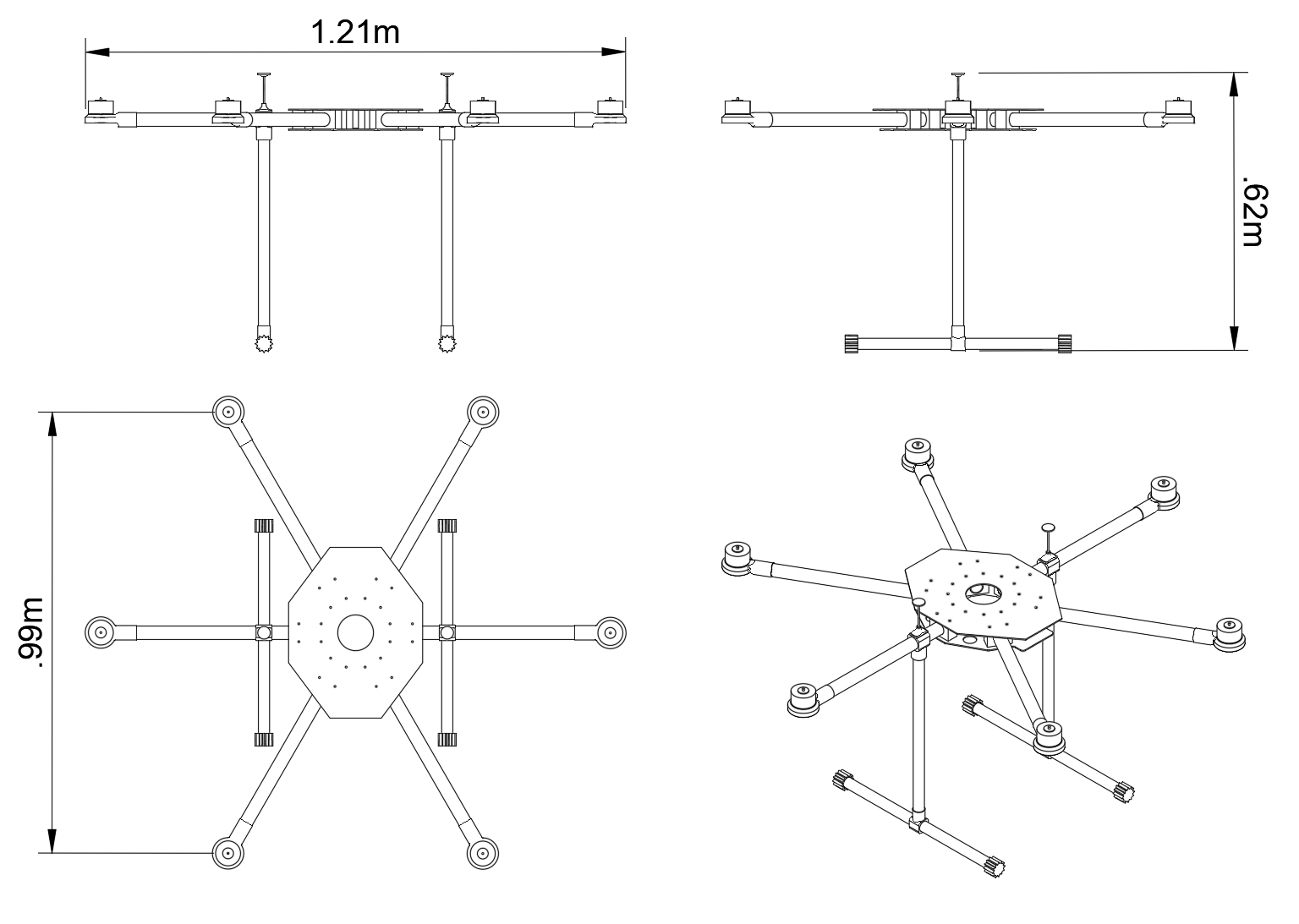

- Wheelbase diameter: 115.2 cm
- Total thrust by all the motors: 32000 (g)
- Dry weight: ?? (Drone's weight without battery)
Components
| Component | Model | Documentation |
|---|---|---|
| FMU | Hex Cube Black | The Cube Module Overview |
| Motor | T-Motor MN505-S KV320 (as part of T-Motor 505-X Combo Pack) | Specification section in the website |
| ESC | T-Motor Alpha 60A 6S | Specification section in the website |
| Props | T-Motor MF2009 20.4 inch | Specification section in the website |
| Rangefinder | SF11/C up to 100 meter range | Product Manual |
