Transmitter Settings ​

At EOLab we used to use the Graupner MX-20 HoTT 2.4 GHz radio, unfortunately the company went bankrupt in 2012, since then the software support of the radio disappeared, it is difficult to find resources or update the firmware of the radios, and the usability of the radios in general was not the best.

Currently we exclusively use the RadioMaster TX16S Mark II with an ELRS (ExpressLRS) built-in radio for all our self-built drones.

NOTE

If you wish to configure a new radio, update the firmware or customize the functionalities follow the instructions on the page for maintainers: Radio Setup

Overview ​

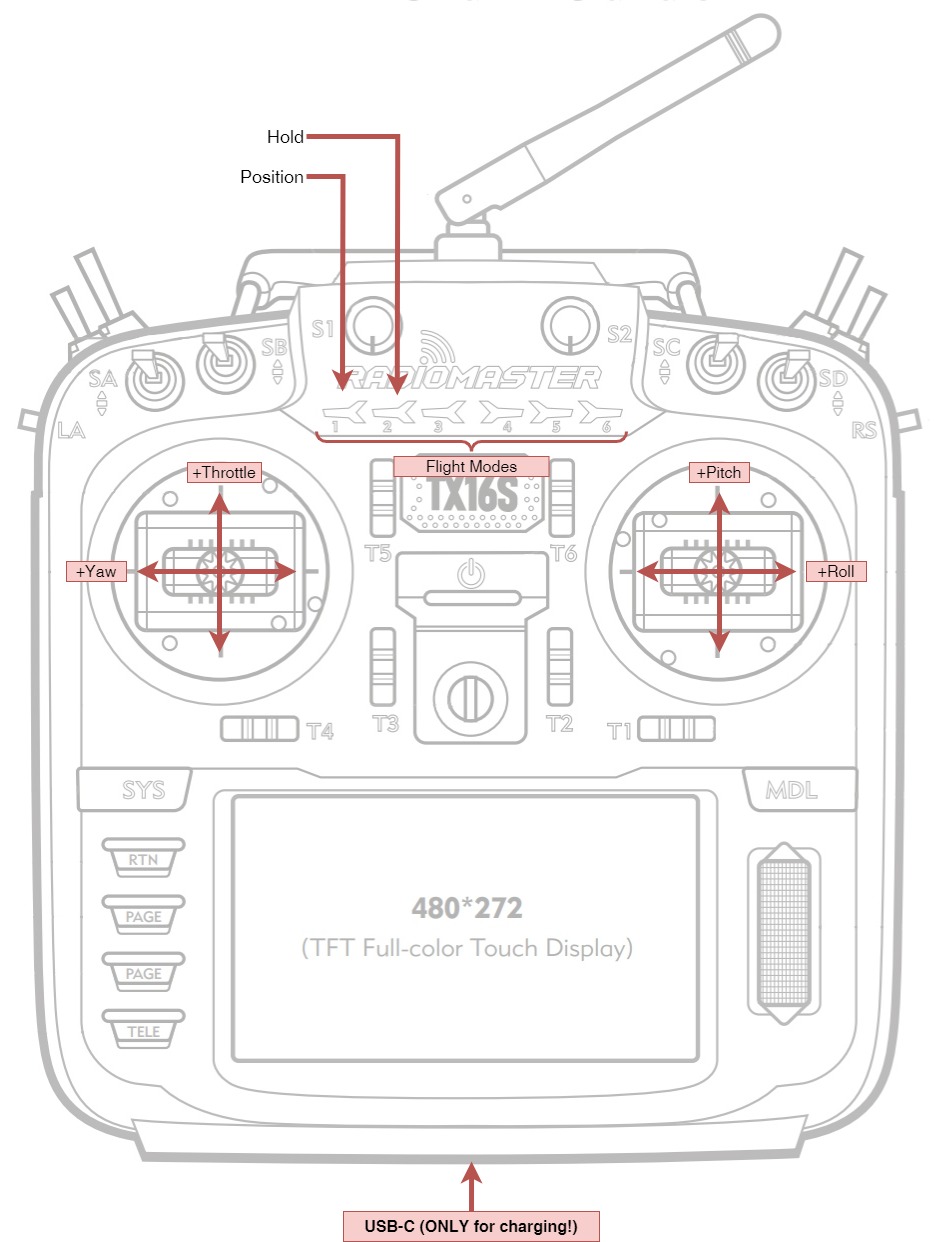

Below is a figure showing the functionality available in the radio configuration.

Transmitter Mapping

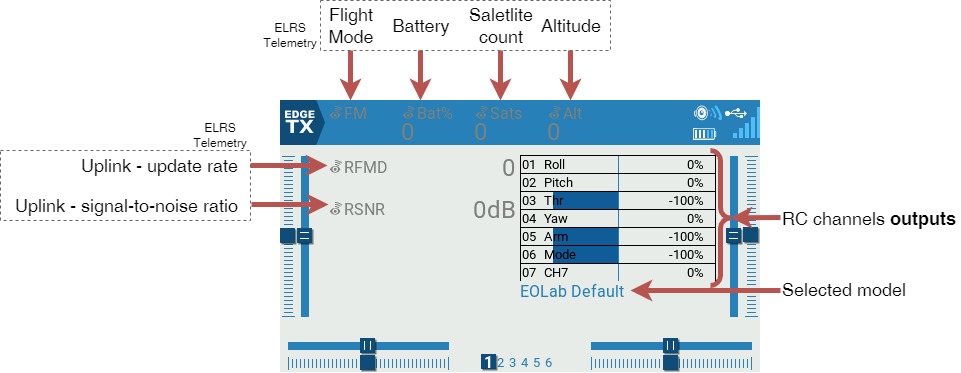

Here is a review of the different symbols and icons in the main screen of the radio.

Radio Main screen

Select Model ​

All our drones are setup to use the EOLab Default model, that you can select in the radio with the following steps.

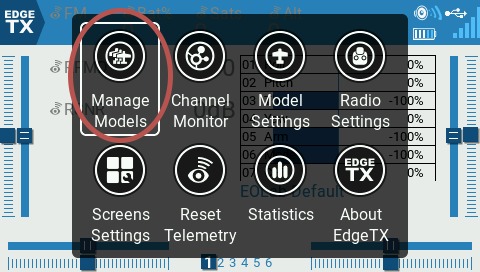

  1. Tap the top left coner EDGE TX. From the menu select Manage Models:

Manage Models

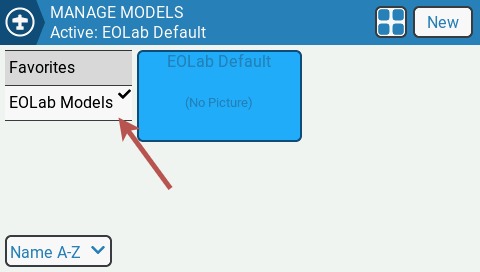

  1. Pick the label EOLab Models to filter only our models:

EOLab Models

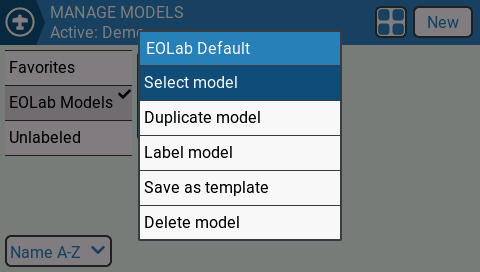

  1. Tap the EOLab Default models and pick Select model. This models is compatible with all our self-builts drones.

Select model

In the main screen of the radio you should see that display the EOLab Default model, as the selected model.

Transmitter and Receiver ​

connection. solid green light in the receiver...

How to Arm ​

stick gesture...
