Condor
Specs
- Payload: 20 Kg

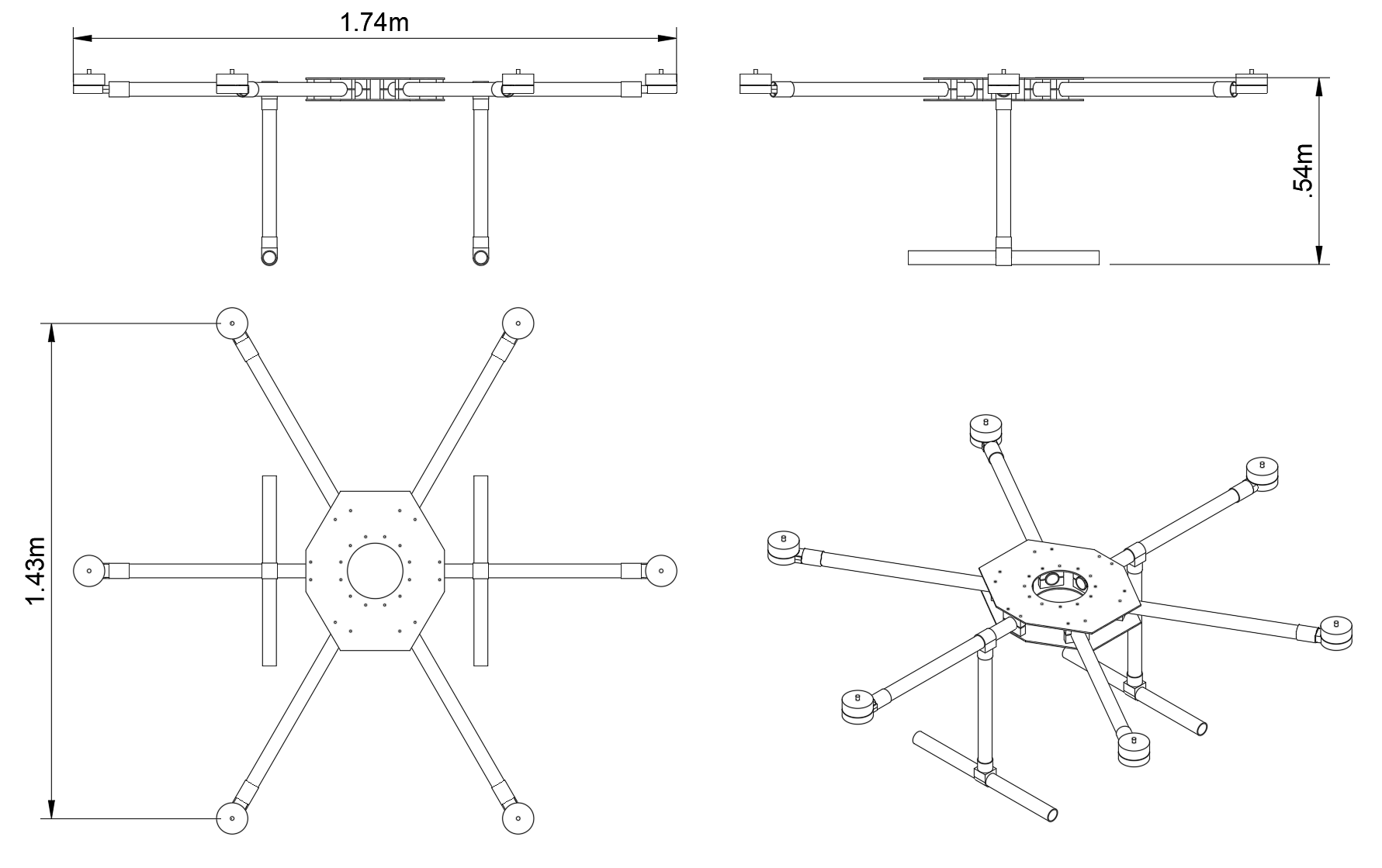

- Wheelbase diameter: 161 cm
- Total thrust by all the motors: 91734 g (15289 g per motor 12S 100% throttle)
- Dry weight: ?? (Drone's weight without battery)

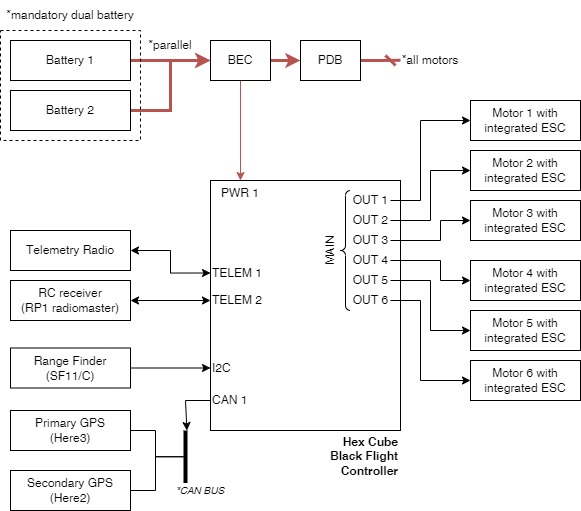

Components
| Component | Model | Documentation |
|---|---|---|
| FMU | Hex Cube Black | The Cube Module Overview |
| Motor | Hobbywing X8 | User Manual |
| ESC | Integrated as part of the motor. See motor user manual for more info. | User Manual |
| Props | 29 Inch foldable prop | User Manual |
| Rangefinder | SF11/C up to 100 meter range | Product Manual |
Batteries
| ID | Status | Vendor/Model | Voltage | Capacity | C Rating (Discharge) |
|---|---|---|---|---|---|
CONDOR-BATT-001 | 🟢 Operational | Tattu Plus 1.0 - User Manual | 12S | 16000 mAh | 15C |
CONDOR-BATT-002 | 🟢 Operational | Tattu Plus 1.0 - User Manual | 12S | 16000 mAh | 15C |
